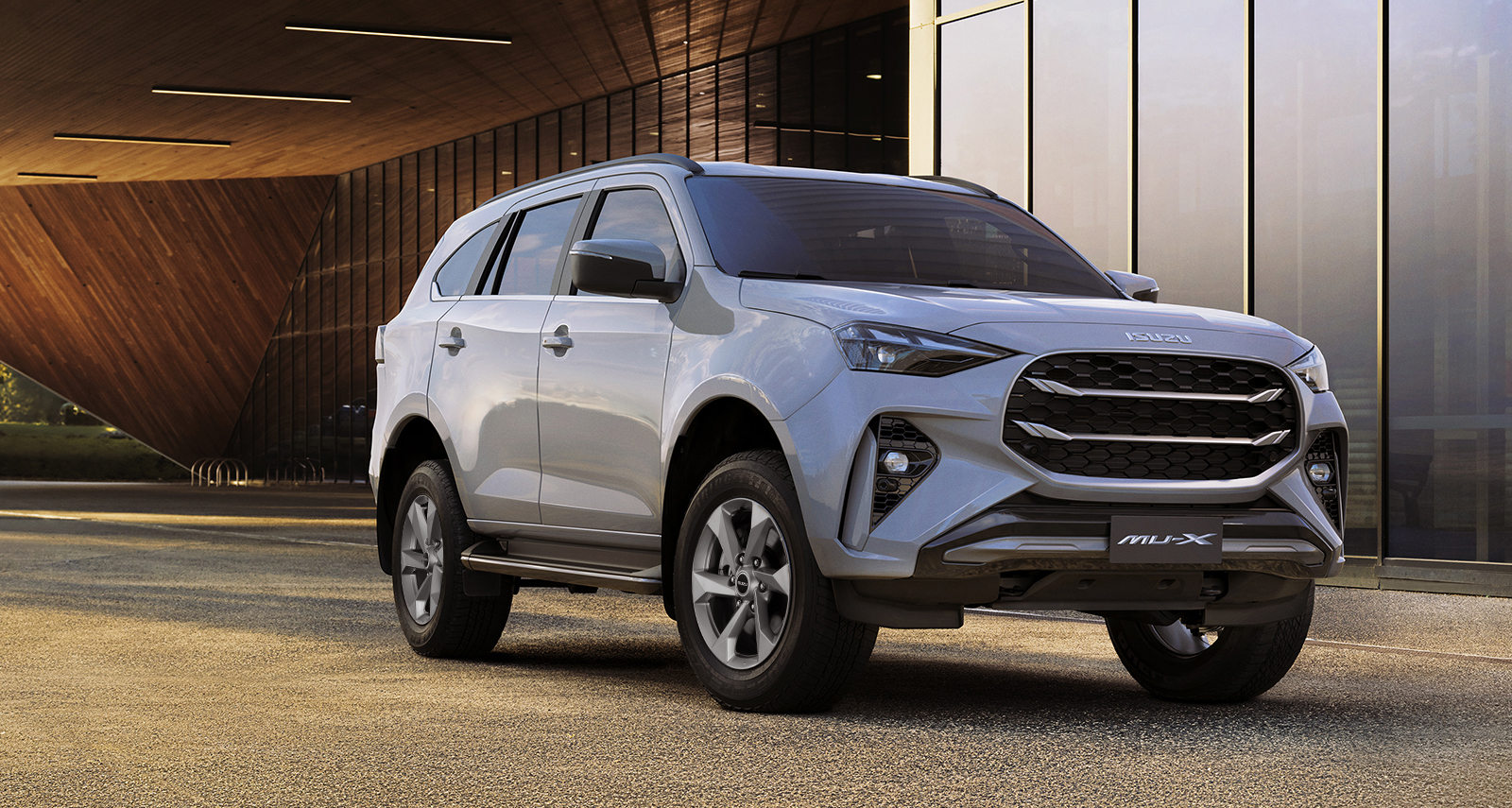

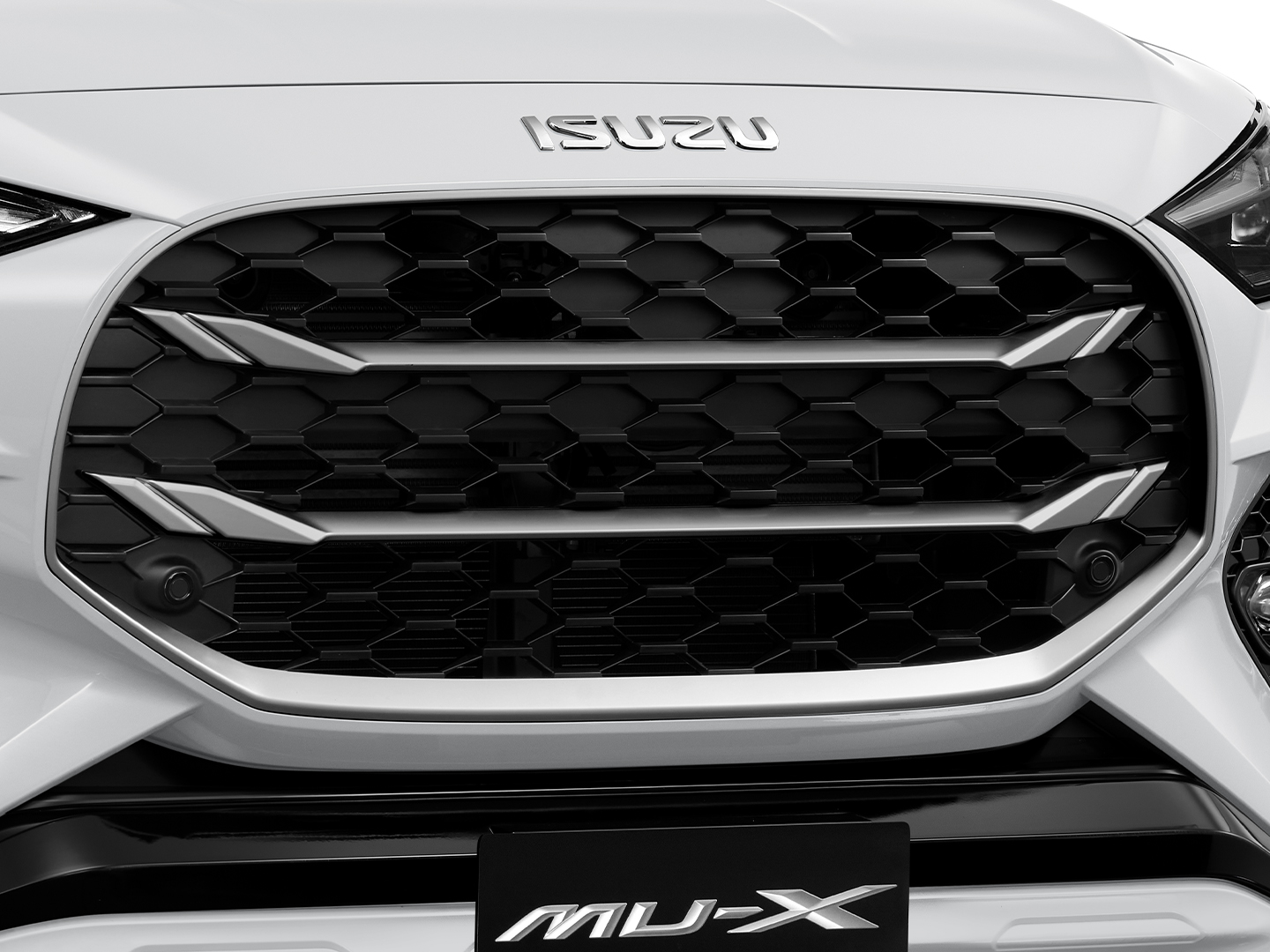

Exterior
BOLD & DYNAMIC
The mu-X is an impressive multi-purpose vehicle displaying a bold and dynamic style. Aerodynamic design not only enhances the look but ensures smooth and efficient performance

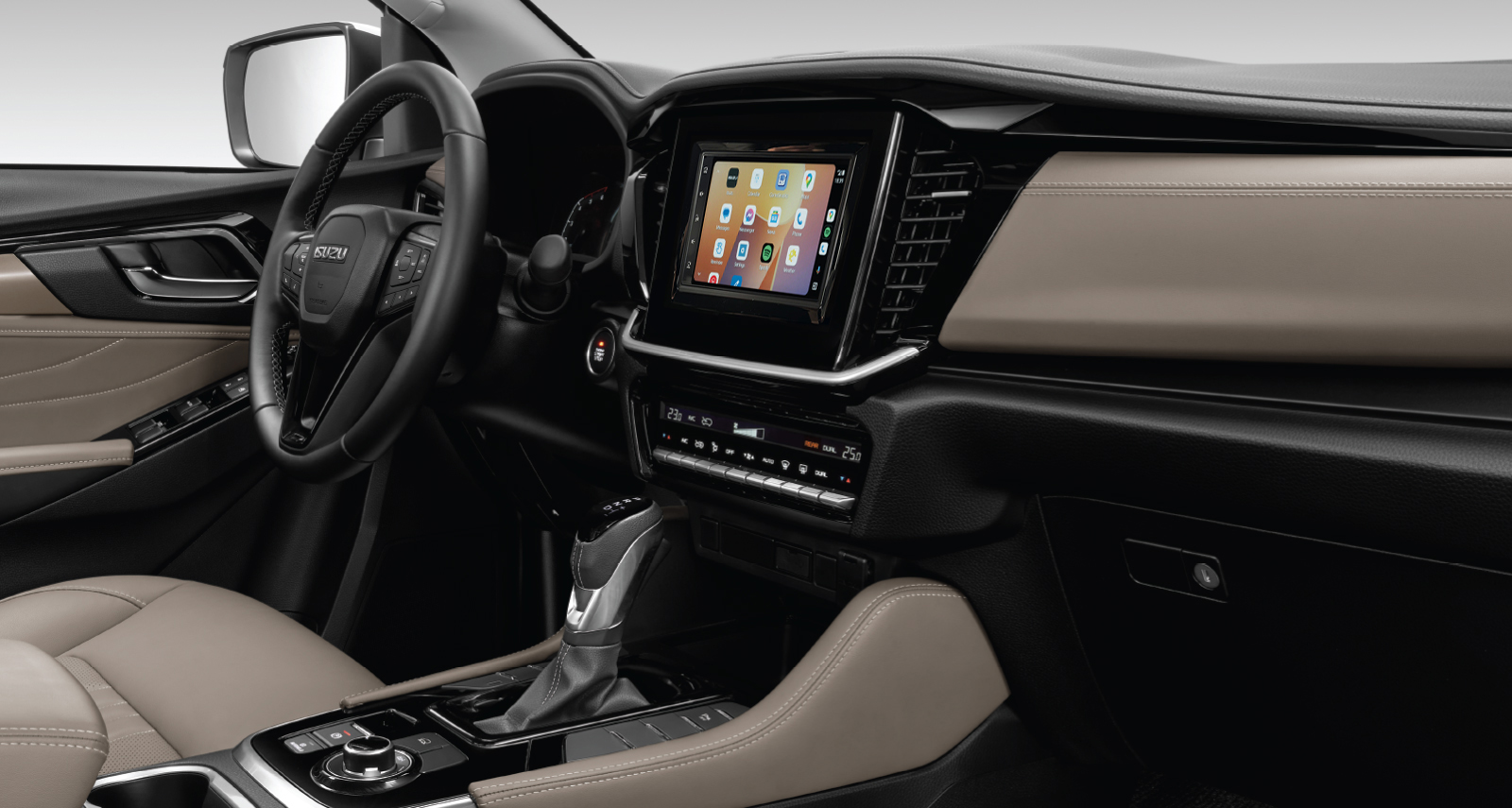

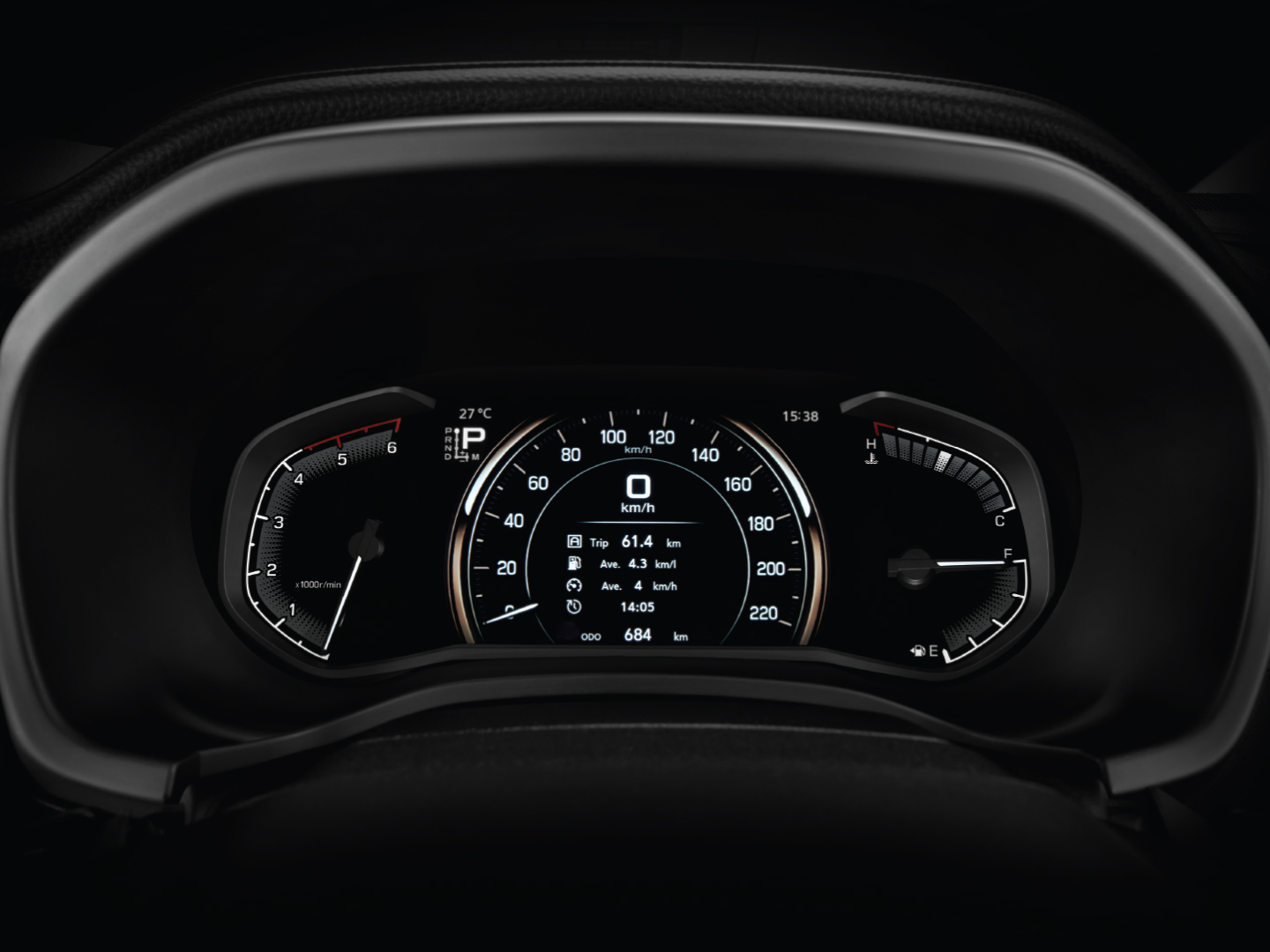

Interior
BOLD & REFINED
The ISUZU mu-X consistently attracts all attention and evokes a modern, comfortable lifestyle. The cabin provides spaciousness and comfort for passengers, while the rear seats can be folded flat to optimize luggage space. The second and third-row seats also feature appropriate recline angles, ensuring passengers are more comfortable on long journeys.

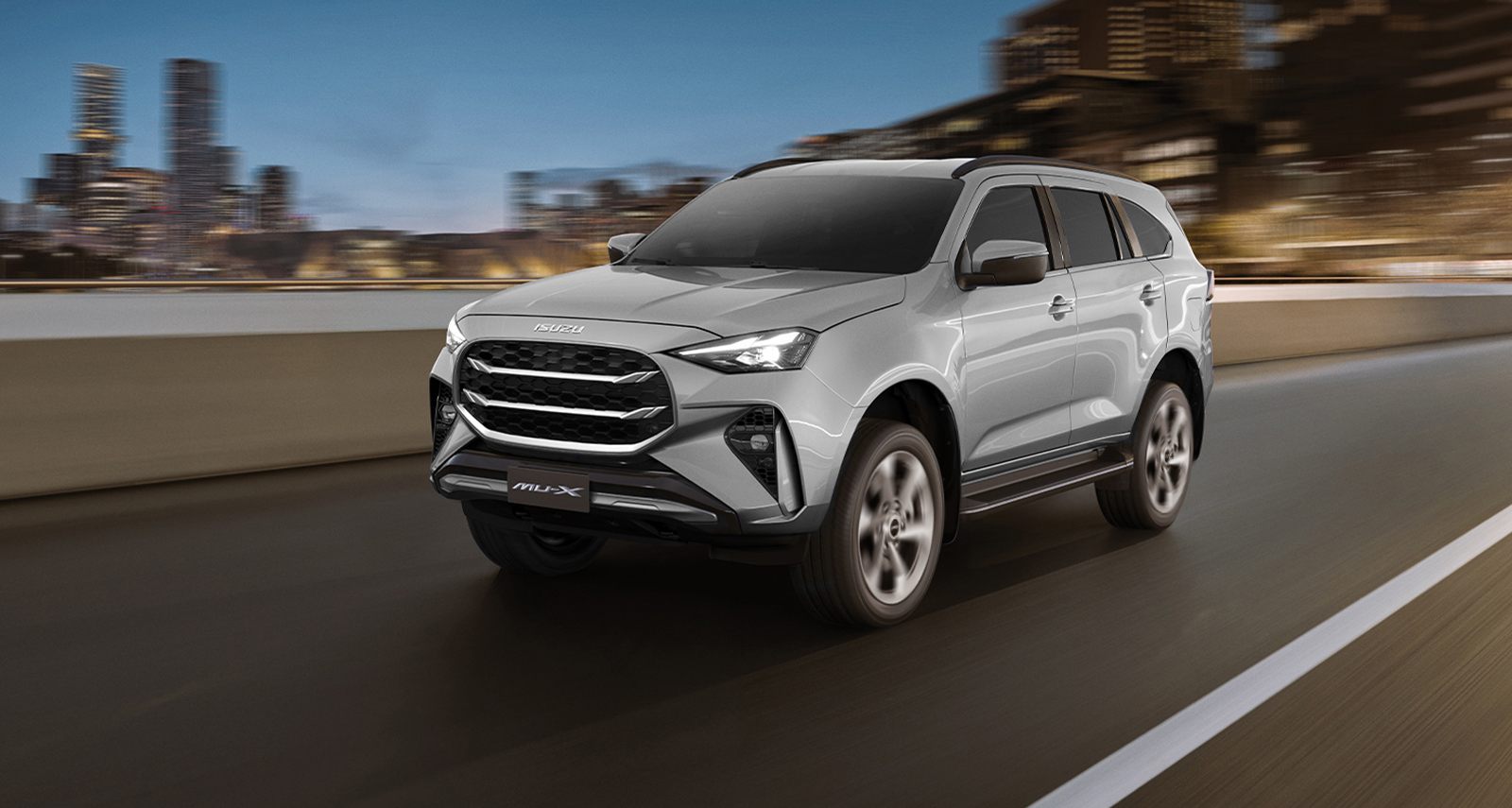

Safety
SAFETY UNCOMPROMISED
In addition to its advanced active safety technologies, the ISUZU mu-X comes fully equipped with all other necessary safety systems, providing ultimate safety on every journey. Wherever you travel, the ISUZU mu-X stands by you, protecting you with top-tier safety features.
Performance
DURABILITY & STABILITY
The ISUZU mu-X engine is not only durable but also ensures compliance with the strictest emission standards and offers economical operation.
explore Specification
OVERVIEW
DIMENSION & WEIGHT
Engine
TRANSMISSION

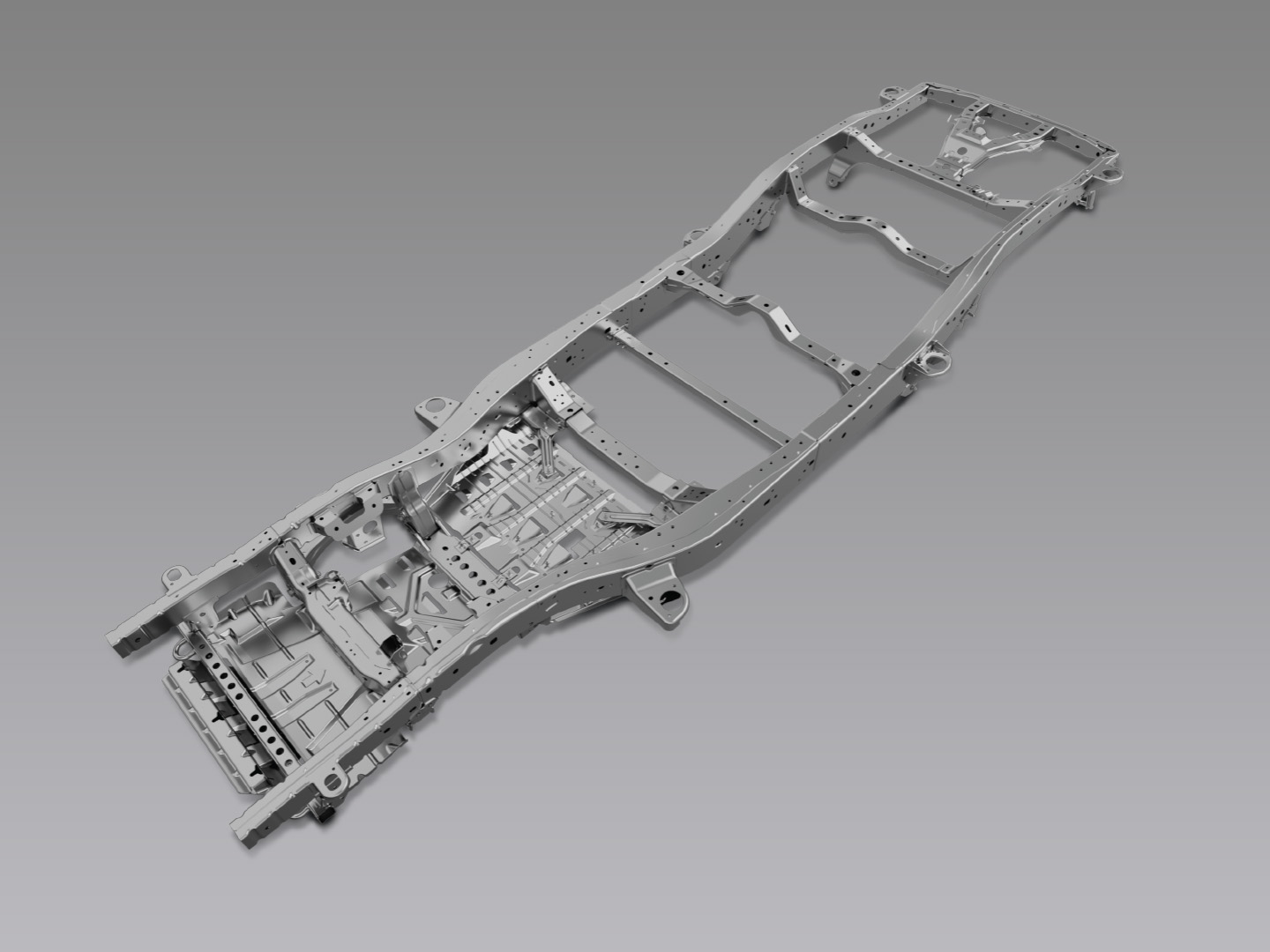

CHASSIS
EXTERIOR
INTERIOR
CONVENIENCE
SAFETY
| Manufacturers Name | Isuzu Motors Co., (Thailand) LTD | |
| Manufacturers Address | 38 Kor. Moo 9, Poochaosamingprai rd., Samrong Tai, Phrapradaeng, Samutprakarn 10130, Thailand | |
| Origin | Thailand | |
| Certification number of approval (TA) | 21KOT/276582 | |
| Model code | UCR87GGL-RLUHVN | |
| Emission | Euro 5 | |
| Overall dimension (L x W x H) | mm | 4,860 x 1,870 x 1,870 |
| Wheelbase | mm | 2,855 |
| Ground clearance | mm | 230 |
| Gross vehicle weight | kg | 2,700 |
| Kerbs weight | kg | 1,935 |
| Min. turning radius | m | 5.7 |
| Fuel tank capacity | Liter | 80 |
| Seating capacity | Persons | 07 |

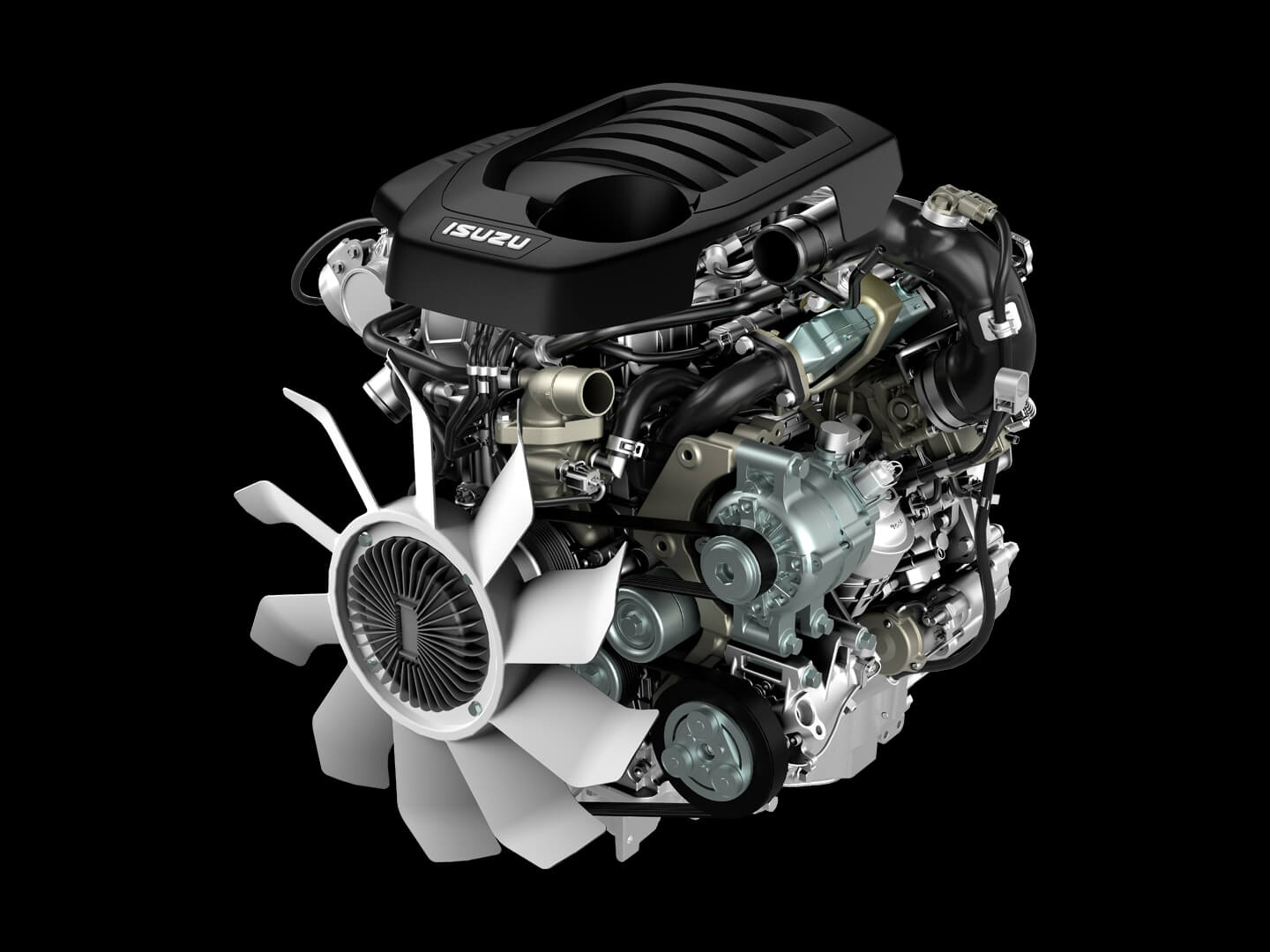

| Model | RZ4E-TC | |
| Type | Diesel 1.9L, In-line 4 cylinders, Intercooler VGS turbo, Common rail | |
| Displacement | cc | 1,898 |
| Max. Power | PS (KW)/rpm | 150 (110)/3,600 |
| Max. Torque | Nm/rpm | 350/1,800-2,600 |
| Emission standard | EURO 5 | |
| Drive configuration | RWD | |
| Fuel Consumption | Urban | 8.65 Liter / 100 km |
| Rural | 4.59 Liter / 100 km | |
| Combine | 6.10 Liter / 100 km |
| Type | 6-speed MT |
| Free wheel hubs | – |
| Suspension | Front | Independent, double wishbone with coil spring |
| Rear | 5-link suspension, coil spring | |

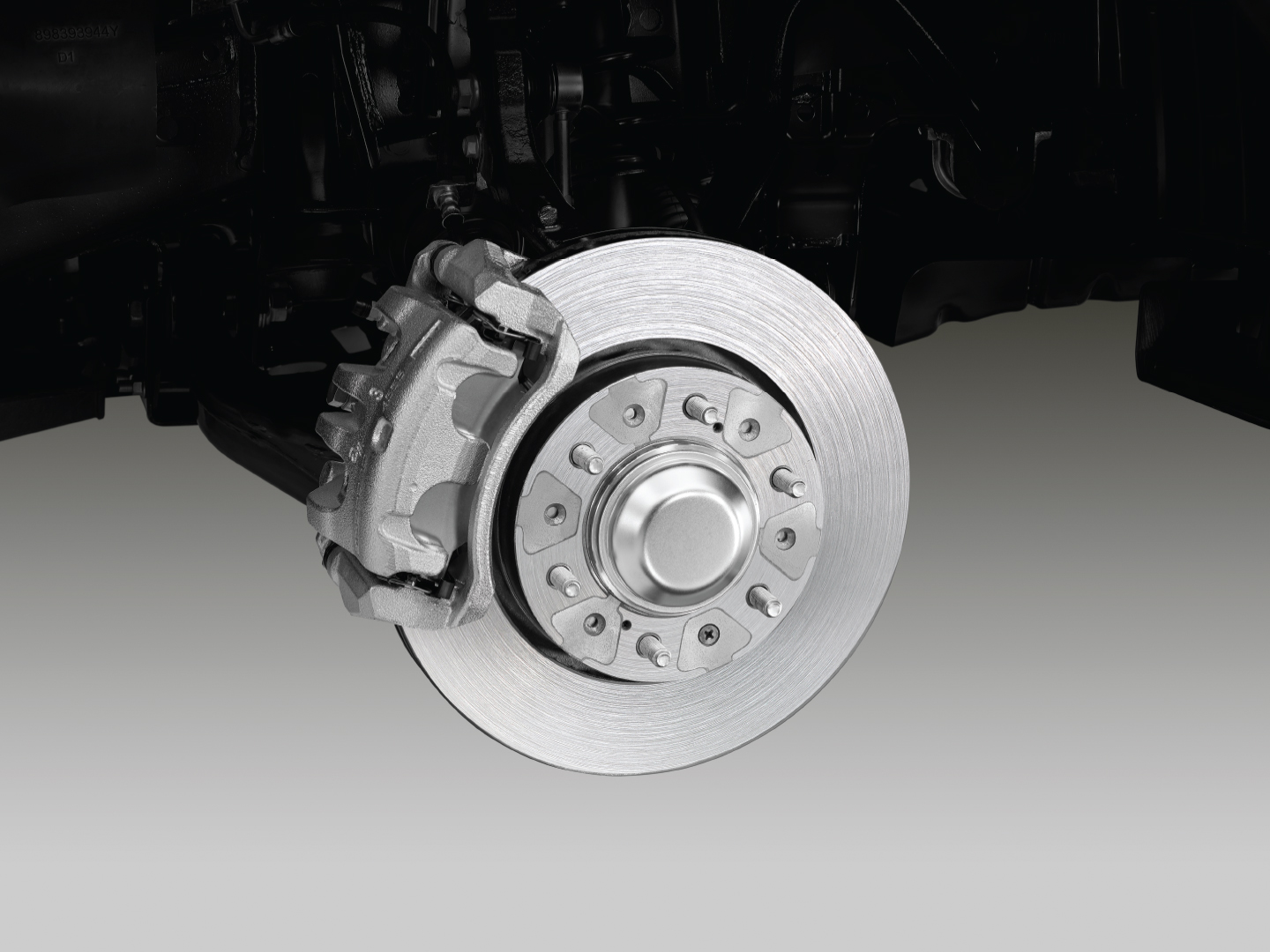

| Brake system | Front | Ventilated disc |
| Rear | Ventilated disc | |
| Assisted steering type | Hydraulic | |

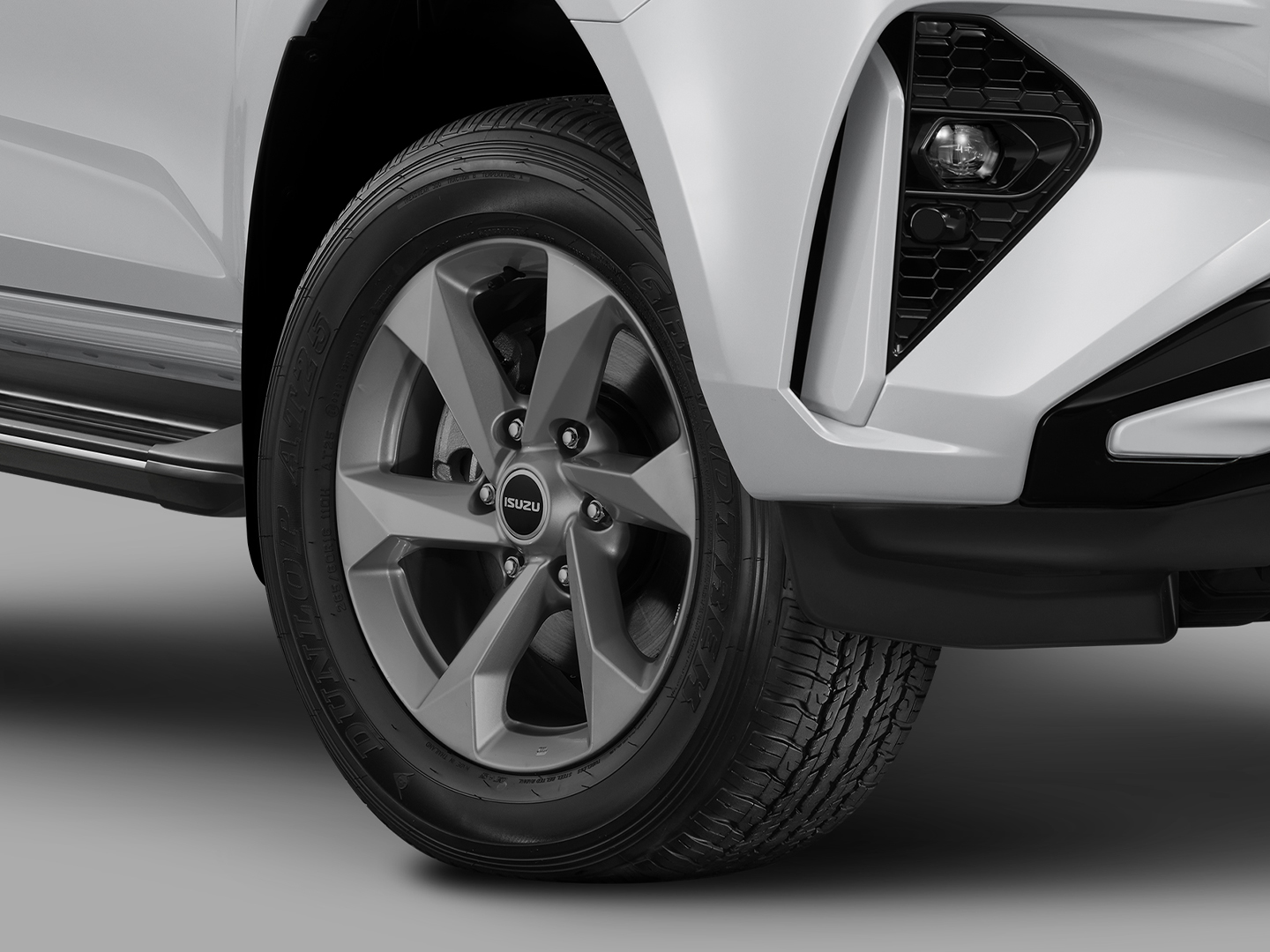

| Wheel | 17 inch Alloy wheel | |
| Tire | 255/65R17 |

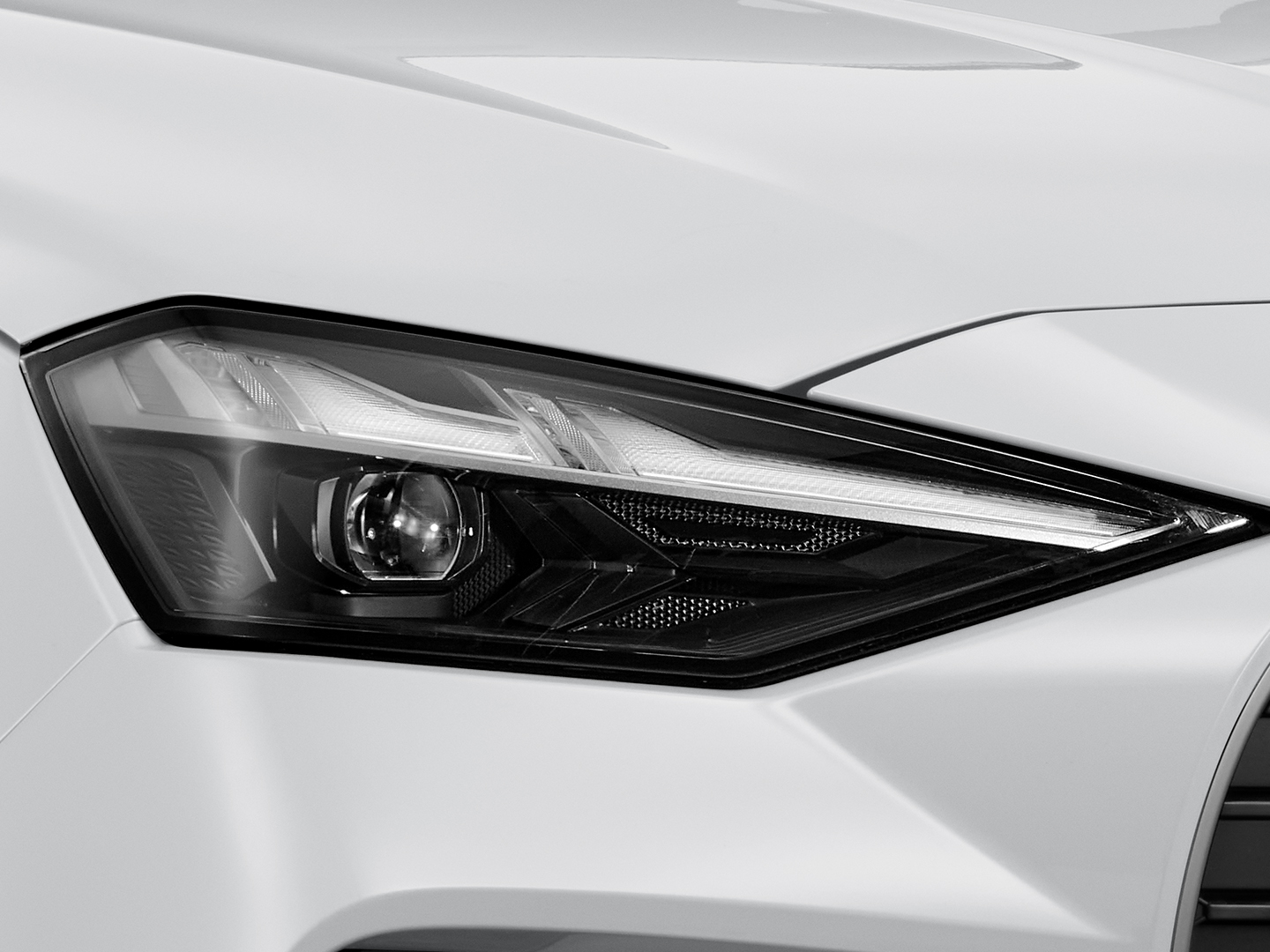

| Head lamp | Bi-LED Projector, automatic leveling, with LED DRL |
| Fog lamp | LED |
| Follow Me Home | With |
| Side mirror | Power folding, power adjust, side turn lamp |
| Steering wheel | Type | Leather wrapped + decoration, switches |
| Paddle shift | – | |
| Adjustment | Tilt & Telescopic | |
| Seat | 1st row | Manual 6-ways driver seat |
| 2nd row | 60:40 split ratio, folding type, central arm rest | |
| 3rd row | 50:50 split ratio, folding type | |
| Material | Leather (Truffle Brown) | |
| Power windows | Auto up & down with jam protection for driver side |
| Cruise control | With |
| Electric Parking Brake | With (Auto hold) |
| Air conditioner | Manual |
| Rear ventilation | With |
| Entertainment system | 7 inch touch screen, Wireless Apple CarPlay & Android Auto |
| No. of speakers | 06 |

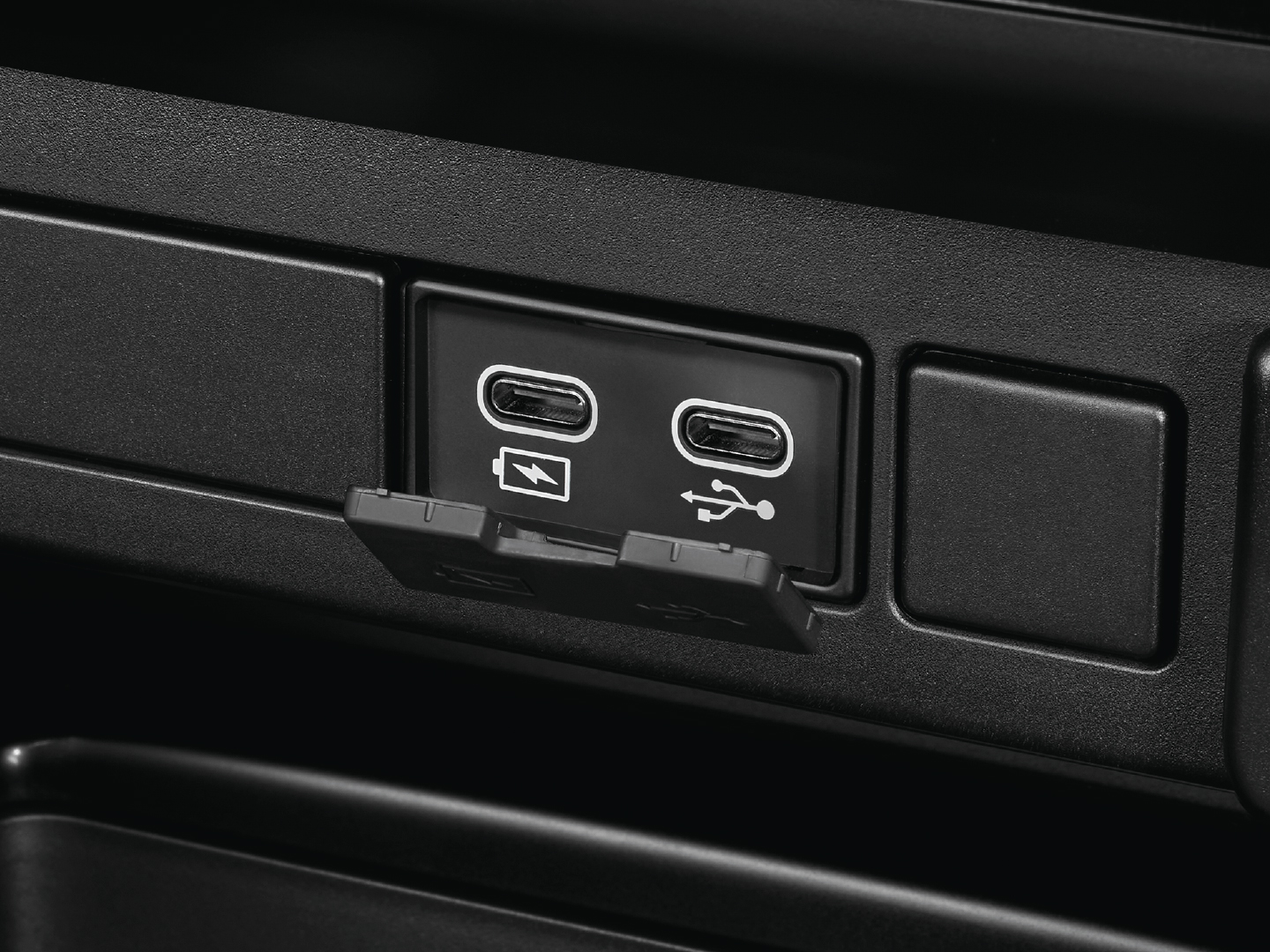

| USB port for charge electric device (5V/2.1A) | 02 |
| Power outlet (220V, 150W) | With |

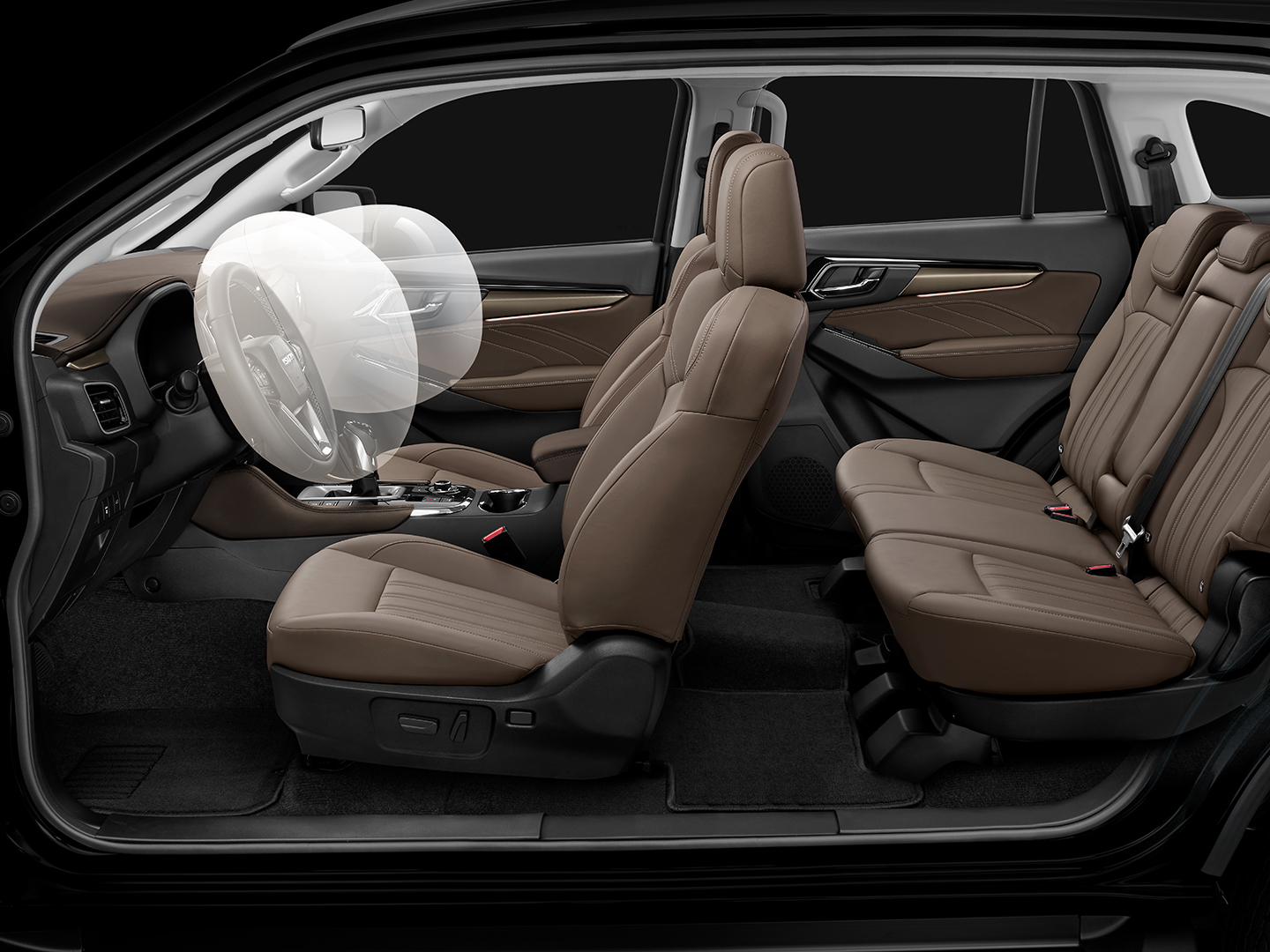

| Airbag | 02 | |
| ABS (Anti-lock Brake System) | With | |
| EBD (Electronic Brakeforce Distribution) | With | |
| BA (Brake Assist) | With | |
| ESC (Electronic Stability Control) | With | |
| TCS (Traction Control System) | With | |
| HSA (Hill Start Assist) | With | |
| HDC (Hill Descent Control) | With | |
| BOS (Brake Override System) | With | |
| Rear View Camera | With | |
| Seat belt | 1st seat row | 03 x ELR with pretensioner |
| 2nd seat row | 03 x ELR | |
| 3rd seat row | 03 x ELR | |
| Auto door lock | With | |
| Door lock release when airbag deploy | With | |
| Child-proof door lock | With |
